| Model | PLC-435M-AU-IR3/PM |
|---|---|
| Image sensor | 1 / 2.7" CMOS |
| Image Size | 2592×1944 |
| Electronic Shutter | 1 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.0236 lux @F2.0, AGC ON; 0 lux with IR 0.0085 lux @ F1.2, AGC ON; 0 lux with IR |
| Lens | 2.8 mm @F2.0, horizontal FoV: 93.4°; Vertical FoV: 77°; Diagonal FoV: 106° |
| Field of View | Horizontal: 92.7°~29.8°; Vertical: 76.4°~22.6; Diagonal: 105.4°~36.8° |
| Focus | Fixed |
| Lens Mount | M12 |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° |
| Video Compression | H.265 / H.264 |
| H.264 Compression Standard | Main [email protected] High Tier |
| Resolution | 5MP (2592 × 1944), 4MP (2560 × 1440), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240 |
| Main Stream | 60Hz: 5MP(1~20fps)/4MP(1~30fps)/1080P(1~30fps)/ 720P(1~30fps) 50Hz: 5MP(1~20fps)/4MP（1~25fps）/1080P（1~25fps/ 720P（ 1~25fps） |
| Sub Stream | 60Hz: 720P (1~15fps)/D1 (1~30fps)/CIF (1~30fps); 50Hz: 720P (1~12fps)/D1 (1~25fps)/CIF (1~25fps) |
| Third Stream | 60Hz: D1/CIF/480 × 240 (1~30fps); 50Hz: D1/CIF/480 × 240 (1~25fps) |
| Bit Rate | 64 Kbps ~ 5 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Network | RJ45 |
| Video Output | No |
| Audio | 1CH built-in MIC |
| Storage | Built-in micro-SD card slot; up to 128GB |
| Reset | Yes |
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro-SD card storage |
| Smart Alarm | Motion detection |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| PoE | Yes, IEEE802.3af |
| IR Distance | 20~30 m |
| Ingress Protection | IP67 |
| Power Supply | DC12V/PoE |
| Power Consumption | < 5W |
| Operating Conditions | - 30 °C ~ 60°C (-22 °F~140°F) E42Humidity: less than 95 % non condensing |
| Dimensions (mm) | Ø 108 × 95.7 |
| Weight (net) | Approx. 0.47KG |
| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH(EC1907/2006) |

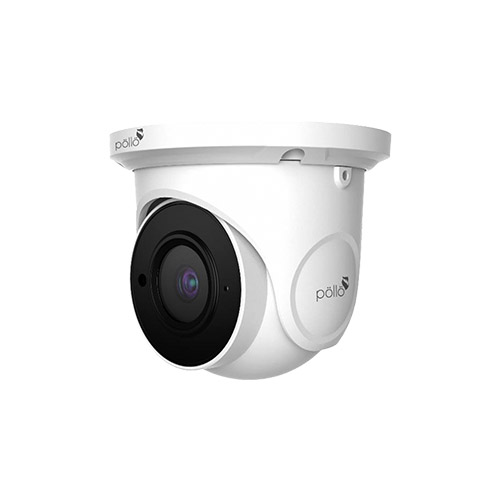

Pollo PLC-435M-AU-IR3/PM 5MP IP Camera
• 5MP Built-In Audio Dome Camera
• H.265
• 20m IR
• Built-In Mic
• Intrusion Detection & Line Crossing Detection
• Support HLC ,WDR, BLC & Defog
• IP67 Ingress Protection
